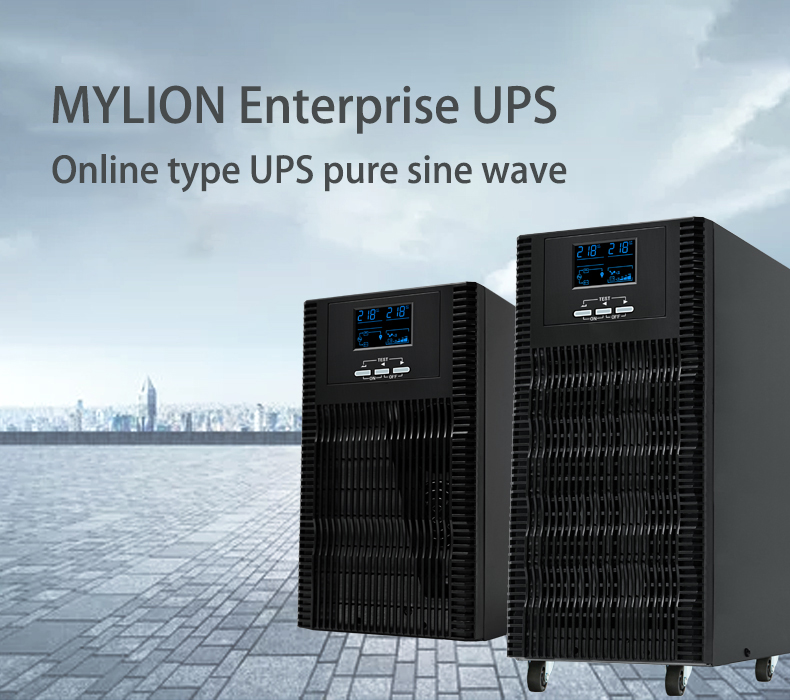

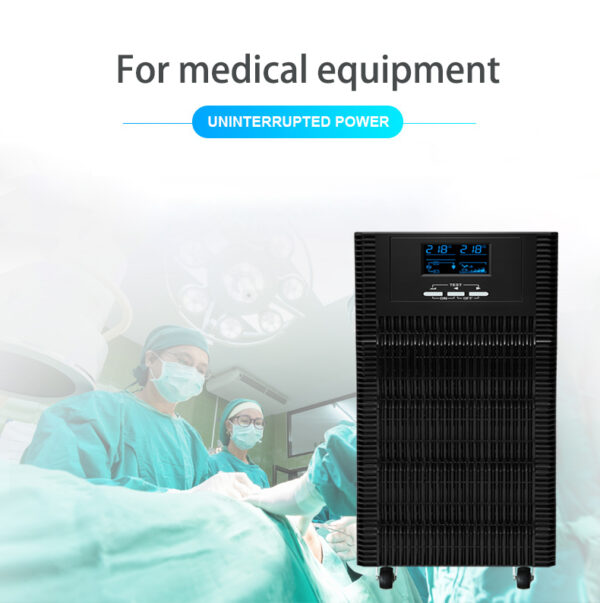

Mylion Online UPS MW6KS 6KVA 5400W LCD UPS battery backup for medical equipment UPS power supply
| Product name | UPS BATTERY BACKUP | |||||
| Model | MPT-1K | MPT-2K | MPT-3K | MPT-6K | MPT-10K | MPT-10KL |
| Capacity | 1KVA | 1KVA | 3KVA | 6KVA | 10KVA | 10KVA |
| Rated Power | 1000W | 2000W | 3000W | 6000W | 10KW | 10KW |
| Phase | Single | |||||
| Mode | Online | |||||
| Input Voltage Range | 110-300Vac | |||||
| Output Voltage Range | 220Vac ±1% | |||||
| Conversion Time | 0second | |||||
| Output Waveform | Pure sine wave | |||||
| Battery Model & Quantity | 12V7Ah*2 | 12V7Ah*4 | 12V7Ah*6 | 12V7Ah*16 | 12V7Ah*6 | External battery |
| Charging Time | 7-8hrs | 7-8hrs | 7-8hrs | 12-15hrs | 7-8hrs | |
| Display Method | LCD | |||||
| Communication Method | RS232, EPO | |||||
| Size (DxWxH)mm | L280xW145xH230 | L392xW145xH230 | L450xW190xH352 | L500xW248xH616 | L500xW248xH616 | L450xW190xH352 |
| Weight (kgs) | 9 | 10 | 25 | 57 | 67.5 | 20 |
